Nu-Ray Metals 8000 Panels

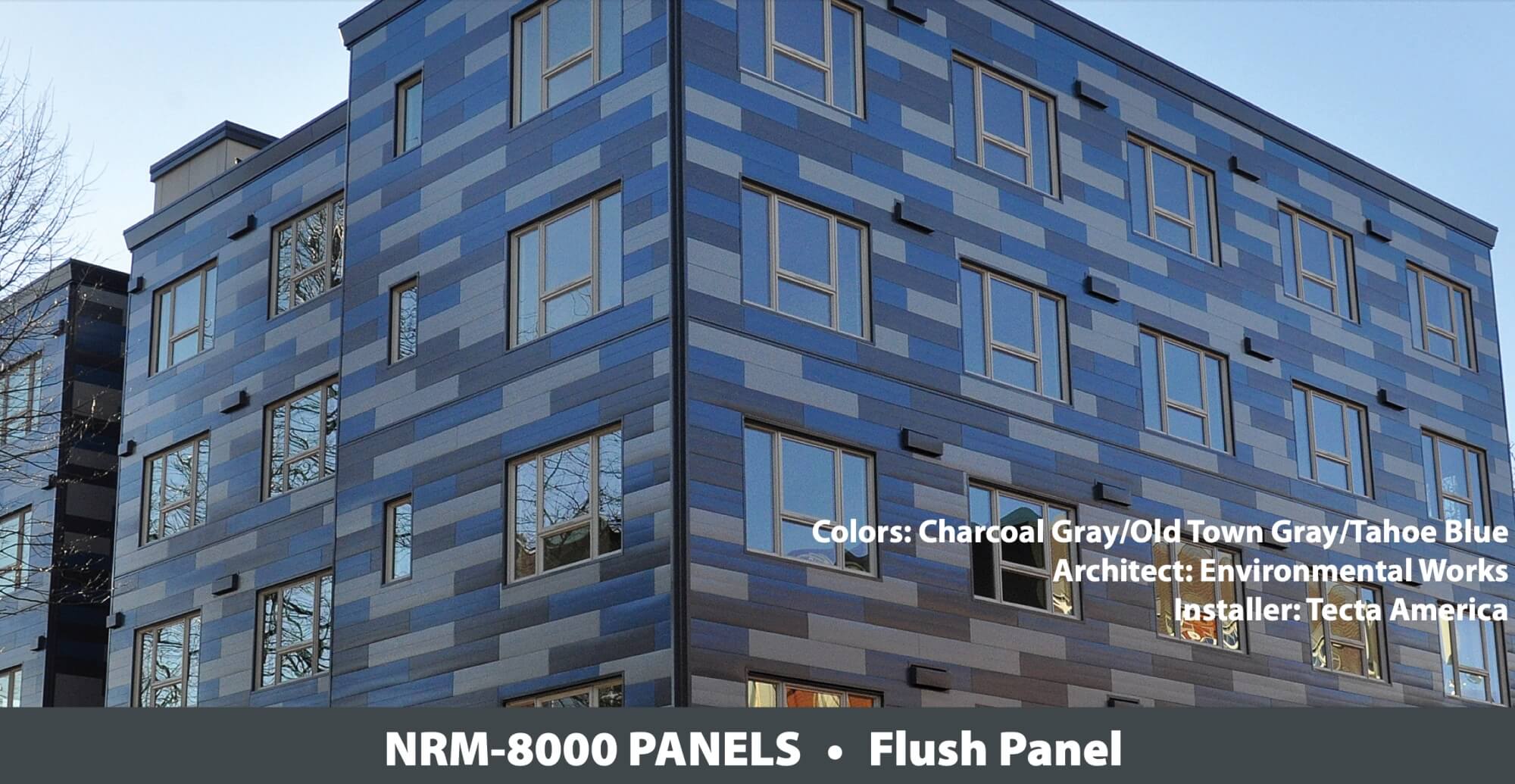

NRM-8000 flush mount panels are designed for wall, fascia and soffit applications where a flush or flat appearance is desired. A rounded interlock leg, concealed fastening system improves the flush appearance while providing additional strength. Panels are factory formed to length to minimize field cutting (12.00” – 45.00’). NRM-8000 panels are available in 14 different profiles from standard 12” wide smooth to specific reveals and striations.

NRM-8000 panels are intended for use in vertical and horizontal wall, fascia and soffit applications. It is not intended for use in roofing or mansard applications.

Stiffening beads (ribs) & striations: NRM-8000 panels are available with 1, 2, or 3 pencil ribs or striations. These cosmetic enhancements are recommended for longer panel lengths.

Colors, sizes, & quantities vary based on CSS location. Please visit our contact form here for your inquiries. Updated 8/22/22.
